Freight elevator dimensions in commercial buildings are typically larger than those in residential settings. These elevators are wider and designed to carry heavier loads, with commercial freight elevators capable of handling up to 10,000 pounds. Their cabins are spacious to accommodate heavy machinery and goods. In contrast, residential freight elevators are built for lighter items such as furniture. Understanding the appropriate freight elevator dimensions is crucial for building owners to select the right elevator that meets their specific needs. This ensures safety, compliance with regulations, and helps prevent breakdowns, ultimately reducing repair costs. Additionally, many facilities complement their freight elevators with manual material lifts or other handling equipment.
Commercial freight elevators are bigger and stronger than residential ones. They can carry very heavy things, sometimes up to 20,000 pounds or more.Residential freight elevators are smaller and hold lighter things like furniture. They fit well in homes or apartments that do not have much space.Building codes like ASME and ADA have rules for size and safety. These rules make sure elevators are safe and easy for everyone to use.Picking the right freight elevator means you must think about the building type, how much weight it needs to hold, space, and local rules. This helps you not make expensive mistakes.Manual material lifts and stackers can help freight elevators. They move lighter things in small spaces.
Commercial buildings need freight elevators with big cabins and strong weight limits. These elevators are used in places like warehouses, factories, malls, and hospitals. Most commercial freight elevators are about 12 feet wide and 14 feet deep. This size lets people move heavy machines, pallets, and big items safely. Some elevators are even bigger, up to 15 feet by 20 feet. The smallest commercial freight elevators are usually 6 feet by 7 feet and can hold about 4,000 pounds.
Commercial freight elevators have to follow strict building rules and accessibility laws. The door must be at least 36 inches wide. The cab needs to be at least 51 inches deep. Some elevators have center-opening doors that are at least 80 inches wide. This makes loading and unloading faster and easier.
Most commercial freight elevators can carry between 2,000 and 20,000 pounds. Many can hold up to 10,000 pounds, but some special ones can carry more than 45,000 pounds. These elevators use steel frames and extra-strong parts to keep people safe. Freight elevators are made for much heavier and bigger things than passenger elevators.
Feature | Freight Elevator Load Capacity (kg) | Passenger Elevator Load Capacity (kg) |
|---|---|---|
Load Capacity | Typically 1,000 to 5,000+ kg | Typically 320 to 1,600 kg |
New technology has made freight elevators better and more efficient. Machine-room-less systems and smart controls help save space and work faster. Many commercial buildings also use manual lifts and stackers to help move things.
Residential freight elevators are smaller and can fit in different spaces. They are made for homes or apartment buildings with less room. Most residential freight elevators are 36 inches wide and 48 inches deep. Bigger models for wheelchairs can be 44 inches by 60 inches. The inside height is usually about 96 inches. The shaft is between 5 feet by 4 feet and 5 feet by 7 feet. The door must be at least 36 inches wide to meet ADA rules.
Dimension Aspect | Typical Residential Size(s) |
|---|---|
Cab Width | 36 inches (3 feet) |
Cab Depth | 48 inches (4 feet) |
Larger Cab Sizes | 40"x48", 44"x54", 44"x60" |
Interior Cab Height | Approximately 96 inches |
Shaft Dimensions | 5' x 4' to 5' x 7' |
Door Width | 36 inches (minimum ADA standard) |
Residential freight elevators carry lighter loads, usually between 400 and 1,000 pounds. Some can hold up to 750 pounds, which is good for moving furniture or groceries. These elevators use timber frames and have easy-to-use controls and safety features. They do not need as much strong support as commercial elevators.
Some elevators save space, like shaftless or compact hydraulic types. Pneumatic vacuum elevators and pitless models need less building work. These choices help people put elevators in small homes or apartments.
Residential freight elevators can be made to fit special spaces and needs. They help make homes safer and more convenient for everyone.
Elevator Type | Typical Load Capacity (pounds) | Usage Context |
|---|---|---|
Residential Freight | 400 to 1,000 (up to 750 in some cases) | Private homes, multifamily residential buildings |
Commercial Freight | 2,000 to 20,000 or more | Office buildings, hotels, retail centers, commercial settings |
When picking a freight elevator for a home, owners should think about space, weight needs, and accessibility. Small designs and new safety features make these elevators helpful for many houses.
When you look at freight elevator sizes, you see big differences. Commercial freight elevators have bigger cabins and wider doors. They also have deeper spaces inside. These elevators use strong floors made from steel or thick rubber. This helps them hold heavy things in places like warehouses and hospitals. The cabins are usually 5 to 7 feet wide. They can be up to 8 feet deep. The doors are wide, from 36 inches to 96 inches. This makes it easy to move big pallets or equipment.
Residential freight elevators are made for smaller spaces. Most are about 3 feet by 4 feet inside. Their doors are 36 to 48 inches wide. These elevators are built for safety and easy use at home. They fit well in houses or apartments with less space. Their small size means they are easier to put in. You do not need to change the building much.
Dimension Aspect | Commercial Freight Elevators | Residential Freight Elevators |
|---|---|---|
Width | 69–80 inches (5'9"–6'8") | 36–40 inches (3'–3'4") |
Depth | 51–95 inches (4'3"–7'11") | 48–60 inches (4'–5') |
Height | Up to building height | Up to 84 inches (7') |
Door Width | 36–96 inches | 36–48 inches |
Commercial freight elevators use smart controls and strong parts for safety. Residential elevators are made for comfort and easy entry.
Weight capacity is a big difference between these elevators. Commercial freight elevators can carry much heavier things. They hold from 2,100 pounds to over 20,000 pounds. This is because of strict rules like ASME A17.1. These rules make sure elevators have strong lifting systems and tough materials. Commercial elevators must work a lot and move heavy cargo. They are very important for jobs that need to move big items.
Residential freight elevators carry lighter things. They can hold between 750 and 950 pounds. This is enough for furniture, groceries, or other home items. The smaller weight limit fits what homes and small buildings need. They do not need to lift very heavy things.
Elevator Type | Load Capacity Range | Typical Use |
|---|---|---|
Commercial Freight | 2,100–20,000+ pounds | Warehouses, factories, hospitals |
Residential Freight | 750–950 pounds | Homes, apartments |
Many places also use manual lifts and stackers to move things safely. Jieyang Machinery has these tools for both commercial and residential needs. This gives buildings more ways to move goods.
Building codes decide how big and safe a freight elevator must be. These rules help keep everyone safe and make elevators easy to use. In the United States, ADA Standards say elevators must fit people with disabilities. Other countries, like Canada, have their own rules too. For example, the Ontario Building Code says elevators in tall buildings must fit a stretcher.

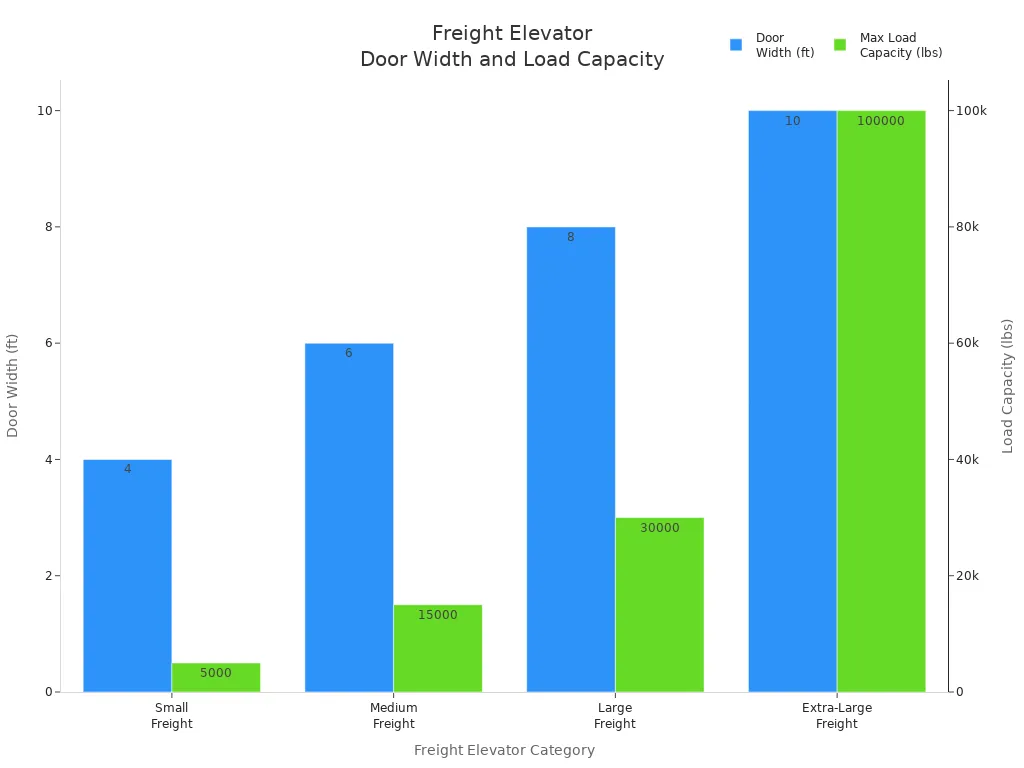

Most rules set the smallest size for cabins and doors. A normal freight elevator cabin must be at least 6 feet wide and 5 feet deep. The cabin should be at least 8 feet tall. Door widths can be 4 feet for small elevators or up to 10 feet for big ones. Safety devices like door locks and alarms are required by law. These rules help stop accidents and protect people.
Requirement Category | Details |
|---|---|
Minimum Cabin Height | 8 feet (2.4 meters) |
Minimum Cabin Width | 6 feet (1.8 meters) |
Minimum Cabin Depth | 5 feet (1.5 meters) |
Door Width | 4–10 feet |
Safety Devices | Door interlocks, alarms, overspeed governors |
Regulatory References | ASME A17.1, ADA Standards, local codes |
Building codes also say there must be clear signs for load limits. Only trained people can use freight elevators.
The way a freight elevator is used changes its size and features. In commercial buildings, elevators move heavy things, pallets, or even cars. Factories and warehouses need big cabins and strong floors. Hospitals need elevators that fit stretchers and medical tools. These needs mean bigger elevators with wide doors and strong parts.
In homes, elevators are used for moving furniture or groceries. These elevators are smaller and fit in tight spaces. They are made to be easy and safe for families. Both types can be changed to fit special needs. For example, a manual material lift or stacker helps move things in small areas. Jieyang Machinery has choices for many building types and needs.
Elevator Type | Typical Dimensions (Width x Depth) | Weight Capacity (lbs) | Customization Focus |
|---|---|---|---|
Commercial Freight | 6 ft x 8 ft up to 12 ft x 17.5 ft | 4,000 to 15,000 | Large loads, heavy-duty use |
Residential Elevator | ~6 ft 8 in x 4 ft 3 in | ~2,500 | Space-saving, code compliance |
Custom freight elevators can be made to fit what each building needs, from factories to apartment buildings.
Picking the best freight elevator starts with knowing what you need. Building owners and managers should use simple steps to find the right elevator.
First, figure out what kind of building you have. Commercial, industrial, and residential buildings need different elevators.
Next, think about how much weight the elevator must carry. Look at the heaviest things and how often you will use the elevator.
Make sure the elevator follows ADA and local building rules. These rules help keep people safe and make elevators easy to use.
Check how tall the building is and how much space each floor has. Tall buildings or big floor plans might need bigger or more elevators.
Decide what the elevator will do most. Pick if you need a passenger, service, or freight elevator.
Plan where the elevator shaft will go. The shaft should be easy to reach and safe for everyone.
Talk to elevator experts. They can help with the design, putting in the elevator, and making sure it follows the rules.
Good planning helps you avoid mistakes like picking an elevator that is too small or not thinking about how many people will use it. If you plan early, the elevator will fit well and work for everything you need.
Space is very important when choosing an elevator. The width and depth of the shaft limit how big the elevator and its door can be. Owners need to measure these spaces carefully. What you move and how often you use the elevator also matter. For example, a warehouse may need a bigger elevator than a small apartment building. Safety rules from ASME and ADA tell you the smallest size and features you must have.
Commercial freight elevators are bigger and can carry more weight than residential ones. Owners need to pick an elevator that fits their building and what they want to move. Experts say to look at local rules, think about safety, and pick things like smart controls or easy access. Custom options help with special needs. Jieyang Machinery has manual material lifts and stackers for many uses. Owners should talk to manufacturers to follow the rules and choose the best freight elevator for their project.
Most commercial freight elevators are between 6 by 7 feet and 15 by 20 feet. These elevators can hold heavy things and wide objects. Building owners look up "freight elevator dimensions for commercial buildings" when they plan new buildings.
A normal residential freight elevator can hold 400 to 1,000 pounds. Some types can carry up to 950 pounds. These elevators help people move furniture and groceries safely. Always check the "residential freight elevator size requirements" before you put one in.
Yes. Building codes say how big the cabin and doors must be. Codes like ASME A17.1 and ADA Standards make sure elevators are safe and easy to use. Owners have to follow these rules when picking elevator sizes.
Manual material lifts and stackers from Jieyang Machinery help move things in small spaces. They do not take the place of freight elevators but are good for lighter loads or places where elevators will not work.
Owners can go to Jieyang Machinery’s product page for more about freight elevators, manual material lifts, and stackers. The website gives details and tips for picking the right equipment for any building.
