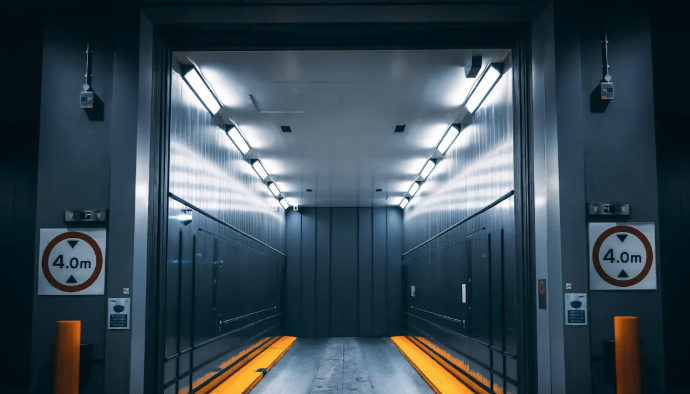

You should be familiar with the typical freight elevator dimensions before planning your building. The table below outlines the width, depth, height, door size, and pit depth for various weight capacities.
Capacity (lbs) | Platform Width x Depth | Door Width x Height | Pit Depth |
|---|---|---|---|
4000 | 7'0" x 8'0" | 6'8" x 8'0" | 4'6" |
5000 | 8'0" x 9'0" | 7'8" x 8'0" | 4'6" |
6000 | 10'4" x 10'0" | 10'0" x 8'0" | 4'6" |
8000 | 10'4" x 12'0" | 10'0" x 8'0" | 4'6" |
15000 | 12'0" x 15'7" | 12'0" x 8'0" | 5'0" |
20000 | 12'4" x 20'0" | 12'0" x 8'0" | 5'0" |
25000 | 14'4" x 20'0" | 14'0" x 8'0" | 5'6" |
Choosing the correct freight elevator dimensions ensures safety for everyone involved. It also promotes smooth operations, helps you comply with building codes, and makes transporting materials easier. Additionally, the right size protects your manual material lift or stacker, extending their service life.
Freight elevator size is based on how much weight it can hold and the size of the cargo. This helps make sure things move safely and smoothly. - Door width and pit depth are important for easy loading. They also help keep the elevator equipment safe from harm. - Picking the right elevator size makes things safer and faster. It also helps your building follow the law. - Think about your largest cargo, how your building is set up, and what you might need later when you pick elevator sizes. - Standard elevator sizes work for most jobs. But custom elevators are better for special or very heavy loads.

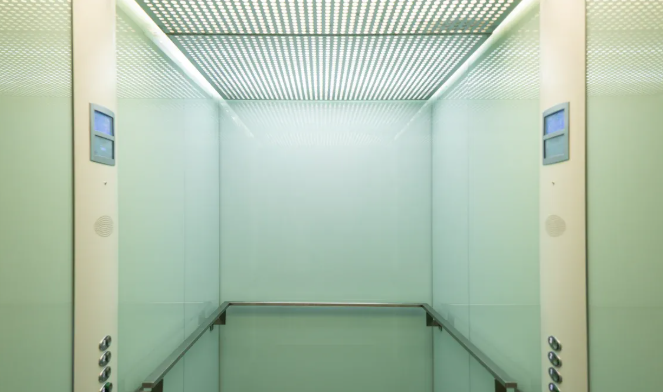

Knowing standard elevator sizes helps you pick the right lift. You need to know the width, depth, height, door size, and pit depth. These measurements change how you move things and keep your building safe. They also help your work go smoothly. Let’s look at each part more closely.
Width, depth, and height decide what you can move. They also show how easy it is to load and unload. Different buildings need different elevator sizes. Warehouses often use bigger elevators than offices. The table below shows how size changes with weight and building type:
Capacity (lbs) | Interior Cab Size (Width x Depth) | Door Width | Typical Building Use |
|---|---|---|---|
4,000 | 7 ft x 6 ft | 60 inches | Retail, warehouses |
6,000 | 8 ft x 6 ft | 72 inches | Manufacturing plants |
8,000 | 10 ft x 6.5 ft | 96 inches | Industrial, hospitals |
As weight capacity goes up, cab size gets bigger too. This lets you move larger or heavier things like pallets or machines. Most commercial elevators are between 6 feet by 6 feet and 10 feet by 10 feet. Passenger elevators are smaller because they are made for people, not goods.
Tip: Always check the lift size before you buy a manual material lift or stacker. This makes sure your equipment fits inside.
Door size and pit depth matter as much as cab size. The door must be wide enough for your biggest items. Most elevator doors are 4 to 5 feet wide. Some elevators have center-opening doors. These make loading faster and easier, especially for long things.
Dimension Type | Standard Range / Formula |
|---|---|
Door Width | 4 feet to 5 feet |
Cabin Size | 6 feet by 6 feet to 10 feet by 10 feet or larger |
Shaft Size | 10 feet by 10 feet to 12 feet by 12 feet or larger |
Pit Depth Formula | (1/2 door height) + 4 inches + space for equipment |
Pit depth is important for safety and setting up the elevator. A deeper pit stops water damage and gives room for equipment. You should add a drainage channel at least 5 cm deep to stop flooding. If the pit is too shallow, the elevator motor could get damaged during heavy rain or cleaning.
Side-opening doors save shaft space but open more slowly.
Center-opening doors use more shaft space but make loading up to 40% faster.
Door frame thickness can take away up to 15 cm of space, so always check the inside size.
Note: For best results, keep the gap between the car sill and landing door sill at 5 mm or less. This stops forklift wheels from getting stuck.
Weight capacity is the most important thing when picking a freight elevator. You must match the elevator’s weight limit to your heaviest loads. Standard elevator sizes are made for different weight classes. The table below shows common weight limits and uses:
Freight Elevator Class | Weight Capacity Range (lbs) | Typical Use Case | Typical Applications |
|---|---|---|---|
Class A (Light Duty) | Up to 2,000 | Small goods | Office buildings, retail, light manufacturing |
Class B (Medium Duty) | Up to 3,500 | Heavier loads | Warehouses, factories, industrial |
Class C1 (Heavy Duty) | 5,000 to 10,000 | Large items | Manufacturing, construction, automotive |
Class C2 (Extra Heavy Duty) | Over 10,000 | Industrial vehicles | Mining, heavy equipment manufacturing |
Most commercial elevators can carry 4,000 lbs to 15,000 lbs. Heavy-duty elevators in factories or warehouses can hold even more. The right weight limit keeps your work safe and smooth. If you use a manual winch or stacker, always check the elevator’s load limit before moving heavy things.
Service elevators and passenger elevators are not the same. Service elevators are made for moving goods and can carry more weight. Passenger elevators are built for people and focus on comfort and safety.
Remember: Always follow ASME A17.1 and local building codes for elevator sizes and setup. These rules help you stay safe and avoid legal trouble.
When you know standard elevator sizes, you can pick the right lift for your building. This helps you avoid mistakes and keeps your work running well. If you want to learn more about manual lifts, stackers, or other equipment, visit Jieyang Machinery’s product page for more details.
You must pay attention to freight elevator dimensions for safety. The right size helps you follow local rules and national standards. Picking the correct size means your elevator can hold the right weight. This lowers the chance of accidents or broken equipment. Safety tools like signs, emergency stop buttons, and alarms work best with the right size elevator. Always show the weight limit at each loading spot. This reminds your team not to overload the elevator and keeps everyone safe. Only trained workers should use the elevator, especially when moving heavy things with a manual material lift or stacker.
The right freight elevator size makes your work easier each day. When you pick the right size, loading and unloading go faster. You can move big items, pallets, or gear without waiting. The right weight limit lets you carry more in fewer trips, saving time and energy. Safety features like smooth doors and flat floors help stop accidents when it is busy. You should teach your team how to load things the right way. This keeps the elevator working well and helps it last longer. Check the elevator often, like oiling moving parts and changing old pieces, to stop big problems. Always write down your maintenance checks to watch your elevator’s health.
Freight elevator size changes how your building is set up and used. The right size makes your building more useful and easy to get around. You can plan for bigger shipments or new machines without big changes. Picking the right weight limit lets you use many types of equipment, like manual winches and stackers. Safety features like wide doors and deep pits make the elevator easier to use and fix. Good planning helps you meet rules for access and makes work flow better. If you need to upgrade your building later, having the right elevator size will save you time and money.
Tip: Always work with experts when planning your elevator. They can help you pick the best size and safety tools for your needs.
When you pick freight elevator dimensions, think about what you will move. You should measure your biggest cargo first. This could be pallets, heavy machines, or large shipments. The elevator must fit these things without causing problems. You also need to know how much weight you will lift. Some places need elevators that hold up to 100,000 pounds.
You can use this checklist to help you choose:
Measure your largest cargo’s size and weight.
Count how many trips you take each day.
Think about your building type and space.
Make sure the elevator works well during busy times.
Pick lift sizes that fit different places and needs.
Different jobs need different elevator sizes and types. Class A elevators are good for general freight and hand trucks. Class B elevators are made for motor vehicles and need bigger cabins. Class C elevators are for industrial trucks and heavy loads. How you load cargo, like with a manual material lift or stacker, also matters.
Your building’s layout helps decide your elevator size. You must make sure goods can go in and out easily. Check the size of your equipment, like forklifts or manual winches. The space around the elevator is important too. Look at things like temperature, humidity, dust, and lighting. Good airflow and waterproofing protect your equipment.
Think about the future. If you plan to move more goods or grow your building, pick an elevator that can handle it. Factories often need bigger elevators for heavy equipment. Commercial buildings balance elevator size with design and space. Homes use smaller elevators for furniture and appliances.
Tip: Always remember the main things that affect lift size, like cargo, building use, and future plans.
You must follow rules and standards when picking elevator sizes. These rules keep your building safe and legal. In the U.S., ASME A17.1 and ADA Standards are the main rules. They say you need clear signs, load plates, and safety tools inside the elevator.
Here is a table with common standards for different loads:
Rated Load (lbs) | Platform Size (ft) | Cab Height (ft) | Door Width x Height (ft) |
|---|---|---|---|
4000 | 7'0" x 8'0" | 8'0" | 6'8" x 8'0" |
5000 | 8'0" x 9'0" | 8'0" | 7'8" x 8'0" |
6000 | 10'4" x 10'0" | 8'0" | 10'0" x 8'0" |
8000 | 10'4" x 12'0" | 8'0" | 10'0" x 8'0" |
10000 | 10'4" x 14'0" | 8'0" | 10'0" x 8'0" |
12000 | 12'4" x 12'0" | 8'0" | 12'0" x 8'0" |
Other countries have different rules for elevators. U.S. elevators often hold more weight and have wider doors. Always check your local rules before you decide.
When you pick the right freight elevator size, your business runs better and safer. Your equipment, like stackers and manual winches, will work well with your elevator. For more about lift sizes and equipment, visit Jieyang Machinery’s product page.
Sometimes, you need a custom freight elevator for special needs. Most buildings use standard elevator sizes, but not all do. You should think about custom elevators if you:
Need to move big or strange-shaped things that will not fit in a regular lift
Have to carry heavier loads than normal
Must fit the elevator into a small or odd-shaped space
Want to move vehicles, dangerous items, or special gear
People often ask for custom elevators with different cab width, depth, or height. Some want other door styles or a deeper pit. You might need a stronger platform or more safety tools, like emergency stops or overload alarms. These changes help you follow safety rules and make your job easier.
Note: Custom elevators cost more than regular ones. You pay extra for the design, materials, and building work. It also takes longer to install and needs more planning.
Standard lift sizes work for most businesses, warehouses, and stores. Most standard elevators are between 6 feet by 6 feet and 8 feet by 8 feet. These sizes can hold 1500 kg to 3000 kg. This is good for moving pallets, machines, or lots of goods. Home elevators are smaller for houses, but business elevators are bigger for work.
Here is a table that shows how standard lift sizes fit different jobs:
Lift Size (Passengers) | Typical Use Case | Approximate Dimensions (mm) | Cargo/Passenger Accommodation |
|---|---|---|---|
2-3 | Homes, small offices | Small shaft | Small items, groceries |
4 | Small commercial buildings | 1100 x 700 | Moderate space, small groups |
8 | Commercial settings, warehouses | 1400 x 1100 | Business cargo, higher traffic |
16 | Large commercial complexes | 1900 x 1500 | High traffic, heavy cargo |
20 | Hospitals, large-scale projects | 2000 x 1700 | Very large capacity, heavy equipment |
Standard lift sizes help you move things safely and quickly. They fit most manual material lifts and stackers, so your tools will work. Picking a standard elevator saves you money and time when you install it. It also helps your building follow safety rules and run well every day.
Tip: Always check your biggest cargo and what you might need later before you pick a lift size. Standard sizes work for most jobs, but you can get a custom one if you need it.
Picking the right freight elevator size keeps your team safe and protects your money. If your elevator fits your biggest loads, you do not need as much heavy lifting. This also helps stop damage to your products and makes your workplace safer. Always think about what your team needs and check important rules like ASME A17 and ADA guidelines. You can ask experts or companies like Jieyang Machinery for help with manual material lifts, stackers, or hand winches. Good planning now helps you save money and keeps your building working well for a long time.
Most warehouse freight elevators are between 6 feet by 6 feet and 10 feet by 10 feet. These sizes fit pallets, manual material lifts, and stackers. Always check your biggest cargo before picking a freight elevator size.
First, measure your largest cargo and think about how much you move each day. Look at your building’s layout and if you might need more space later. Try using a hand winch or stacker to see if things fit. Check local rules and visit Jieyang Machinery’s product page for more help.
Standard passenger elevators cannot carry heavy or big items. You need a freight elevator with the right weight limit and door size. This keeps equipment, manual winches, and large goods safe during transport.
Look for clear load plates, emergency stop buttons, alarms, and wide doors. These features help stop accidents and keep your team safe. Jieyang Machinery has equipment that meets these safety needs.
Go to Jieyang Machinery’s product page to learn about manual material lifts, stackers, and hand winches. You will find details and tips for picking the right equipment for your freight elevator.
